GAS CONTROL VALVE KNOB
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Observation:

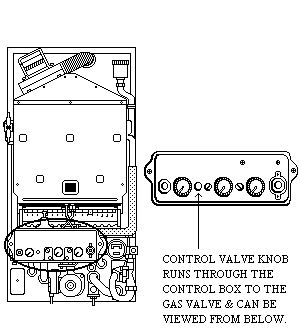

Check Gas Control Valve Knob is aligned correctly through Electrical Control Box and is making contact with the Gas Valve.
CONTROL KNOB CORRECTLY ALIGNED
CONTROL KNOB INCORRECTLY ALIGNED
