Set Appliance State:
Mains Power Off
Gas On; Pilot On
Turn Hot Water Tap On
Rotary Switch to DHW position
DHW Temperature Control To Maximum

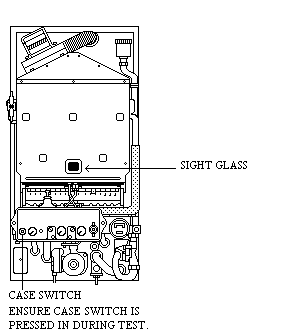

Hold in Boiler Case Switch
DHW Temperature Control To Maximum
Hold in Boiler Case Switch
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Approximately 3 seconds after the burner ignites, does the burner go from low flame to high flame?
