Set Appliance State:
Mains Power Off
Gas On; Pilot On
Turn Hot Water Tap On

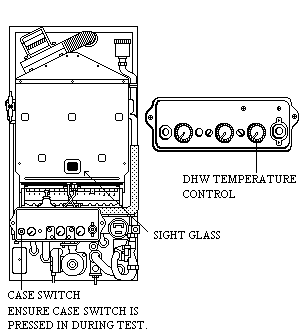

Rotary Switch to DHW position
DHW Temperature Control To Maximum
Hold in Boiler Case Switch
DHW Temperature Control To Maximum
Hold in Boiler Case Switch
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
After a suitable period with the burner at high flame, slowly reduce the DHW Temperature Control setting to a minimum. Does the burner flame reduce in size?
