Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Rotary Switch to CH/DHW position
CH Thermostat To Maximum
Hold in Boiler Case Switch
CH Thermostat To Maximum
Hold in Boiler Case Switch
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

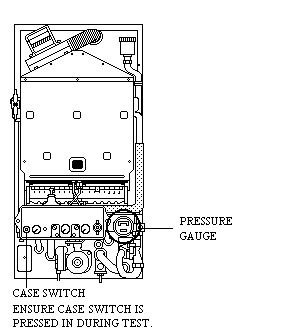

Run boiler up to temperature whilst monitoring system pressure on the pressure gauge.
Does the System pressure remain below 1.5 bar?
Does the System pressure remain below 1.5 bar?
Isolate as per TOPs P4
and refit as necessary
