Set Appliance State:

Gas Off
Set Multimeter to Resistance Set meter to measure resistance
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4

Measurement:

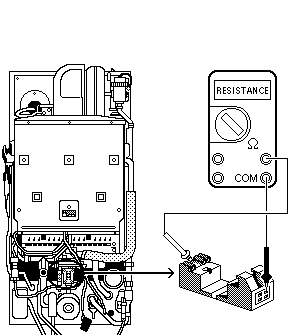

Measure the resistance across the Green wire (connection 1 on right) and the White wire (connection 1 on left) on the DHW flow microswitch assembly.
