FUSE 0.25 AMP RESISTANCE
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

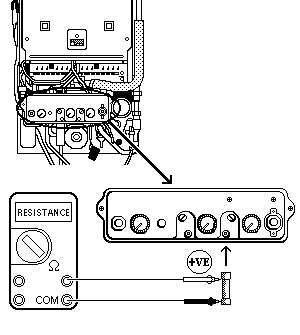

Remove the 0.25 amp fuse and measure its resistance.
Refit fuse.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
