OBSERVATION HAS THE MAINTENANCE INTERVAL SURPASSED

Set Appliance State:

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure

Mains Power On

Observation:

Enter the appliance parameter setting mode and access parameter 8-5-0
click here for a guide on how to do this.

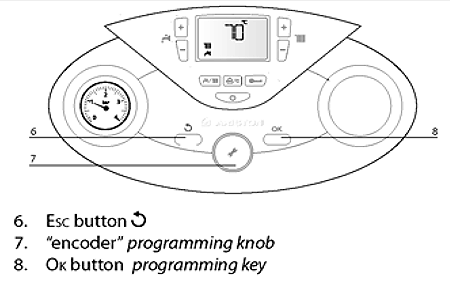

ar clas he 38 evo.fca parameter settings.gif

Note.
Reset the maintenance interval as required.
Click here to refer to Adapt for guidance.

Is 0 on the display ?

1. Navigate to parameter 8-5-0, the 3rd digit '0' will flash, this is the months to next maintenance parameter.

2. Press the OK button, a value appears on the display, this value is the number of months until the next maintenance is required. If the maintenance interval has surpassed '0' will be displayed.
