CASE REMOVAL

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

CONTROL PANEL REMOVAL

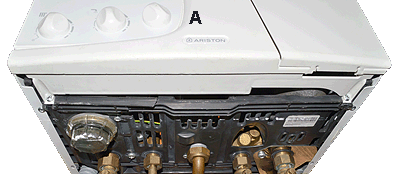

1. Remove the front panel by loosening the fastening screws A located on the lower panel.

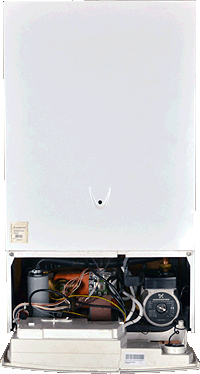

2. The front panel rotates on two lateral hinges; the panel stays in a horizontal position, which allows access to the inner parts of the boiler.

ar microgenus 24 mffi he lwr front panel a.gif

ar microgenus 24 mffi he outer front panel dwn.gif

ar microgenus 24 mffi he front panel removed.gif

FRONT PANEL REMOVAL
1. Remove the screws B from the front panel bottom lip.
2. Lift front panel up and forward from the raised screws at the top of the casing.

COMBUSTION COVER REMOVAL
1. Remove screws C.
2. Lift the combustion cover panel from the locating pins.
