MODULATION COIL RESISTANCE
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

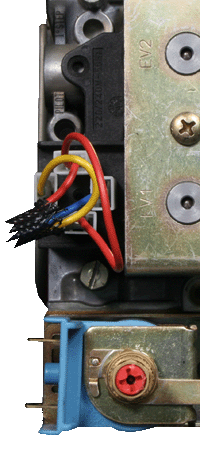

Remove both wires from Modulation Coil
Measurement:
Check resistance of Modulation Coil lies between 100 and 150 ohms.
WITHIN RANGE
NOT WITHIN RANGE
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
