Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
G.C. Number 47 116 02
Up to Serial Number 960100000

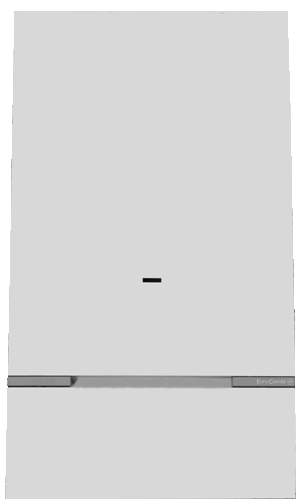

1. Remove the 4 screws located at the bottom of the boiler, 2 on the left edge and 2 on the right.
2. Remove the 2 screws located at the front of the boiler.
3. Pull the case up and forward to release from its clips.
4. For easy access to the interior of the boiler, remove the screws at each side of the user panel and support whilst lowering.
Up to Serial Number 960100000
1. Remove the 4 screws located at the bottom of the boiler, 2 on the left edge and 2 on the right.
2. Remove the 2 screws located at the front of the boiler.
3. Pull the case up and forward to release from its clips.
4. For easy access to the interior of the boiler, remove the screws at each side of the user panel and support whilst lowering.
Isolate as per TOPs P4
and refit as necessary
