Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Ensure appliance is cool - below 30°C
(This can be achieved by running the DHW with the gas off)
Attach a temperature clamp to the flow pipe as indicated by the red arrow
(This can be achieved by running the DHW with the gas off)
Attach a temperature clamp to the flow pipe as indicated by the red arrow
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

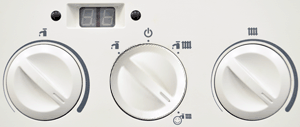

Turn the selector switch to the preheat setting.
The appliance should ignite and run for preheat, heat up to
approximately 50°C then the burner should extinguish.
Does the preheat operate satisfactorily?
The appliance should ignite and run for preheat, heat up to
approximately 50°C then the burner should extinguish.
Does the preheat operate satisfactorily?
