Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)

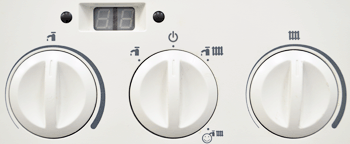

Position all 3 control knobs so the line on the knob aligns with the CH, DHW and Power symbols as shown
Position all 3 control knobs so the line on the knob aligns with the CH, DHW and Power symbols as shown
Observation:
Visually inspect the potentiometers on the PCB as highlighted.
Each of the 3 potentiometers has a small notch on the inner white part that rotates (indicated with the red arrow), these should point approximately to the front of the appliance as shown for all three potentiometers.
Are the control knobs and potentiometers aligned correctly?
Each of the 3 potentiometers has a small notch on the inner white part that rotates (indicated with the red arrow), these should point approximately to the front of the appliance as shown for all three potentiometers.
Are the control knobs and potentiometers aligned correctly?
