Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
On/Off Switch in ON position
Mode Selector Switch to Summer
DHW Thermostat to MAX
Mode Selector Switch to Summer
DHW Thermostat to MAX
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

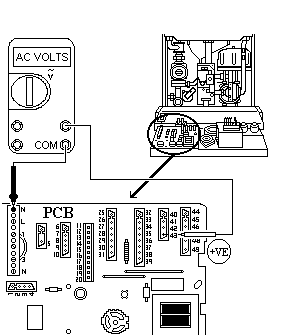

Measure Mains Voltage across connections 43 L (White) and N (Blue).

Isolate as per TOPs P4
and refit as necessary
