ON/OFF SWITCH OPERATION
Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
On/Off Switch in ON position
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

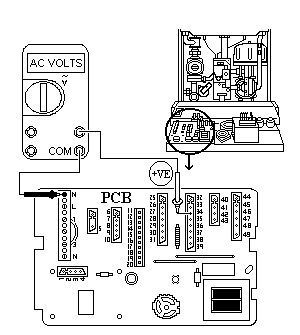

Is there Mains Voltage present across connections 34 L (Black) and N (Blue)?
MAINS VOLTAGE PRESENT
MAINS VOLTAGE ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
