DHW FILTER
Isolate Mains Power to appliance as per TOPs P4
Measurement:
Remove and inspect the DHW inlet filter for signs of damage or blockage.

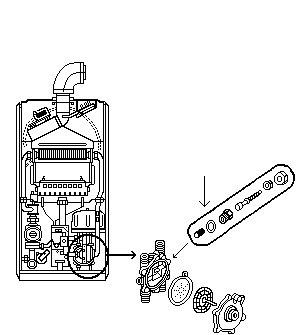

Filter and throttle assembly
FILTER CLEAR AND UNDAMAGED
FILTER BLOCKED AND/OR DAMAGED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
