Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch in ON position
Mode Selector Switch to Constant
Mode Selector Switch to Constant
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

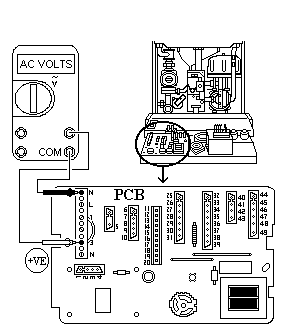

Measure Mains Voltage across terminal block connection 3 L (Brown) and N (Blue).

Isolate as per TOPs P4
and refit as necessary
