AIR PRESSURE SWITCH TUBE
Isolate Mains Power to appliance as per TOPs P4
Observation:

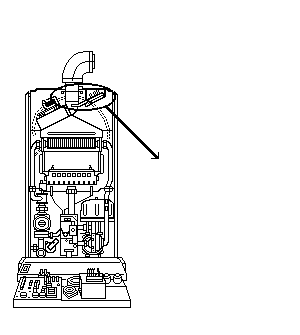

Check air pressure switch tube for signs of damage or blockage.
Tube runs between venturi and the air pressure switch
TUBE OK
TUBE DAMAGED OR BLOCKED
