MAINS POWER SUPPLY
Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
On/Off Switch in OFF position
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

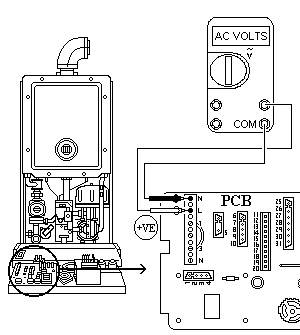

Is there Mains Voltage present across connections L and N on the main PCB?
MAINS VOLTAGE PRESENT
MAINS VOLTAGE ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
