Set Appliance State:

Mains Power Off
Set Multimeter to AC Volts Set meter to measure AC Volts
CH Demand
On/Off Switch in ON position
Mode selector switch to Constant
WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On

Measurement:

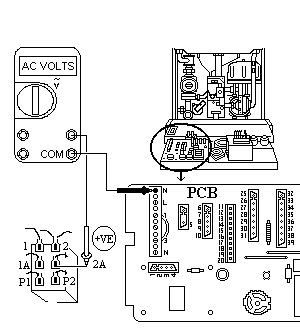

Measure Mains Voltage across connector 2A L (Black) and N (Blue).
NOTE:
Remember the C/H mode delay timer - the boiler will not fire immediately.
