Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch in ON position
Mode Selector Switch to Constant
Mode Selector Switch to Constant
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

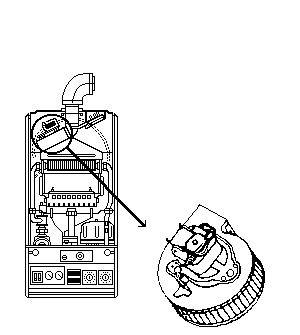

Does the Fan run?
NOTE:
Remember the C/H Mode Delay Timer. The boiler will not fire immediately.
ATTENTION! - If fan runs do not turn boiler off after test.
Move to next test keeping the boiler going.
NOTE:
Remember the C/H Mode Delay Timer. The boiler will not fire immediately.
ATTENTION! - If fan runs do not turn boiler off after test.
Move to next test keeping the boiler going.
