Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
On/Off Switch in ON position
Mode selector switch to Summer
Mode selector switch to Summer
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

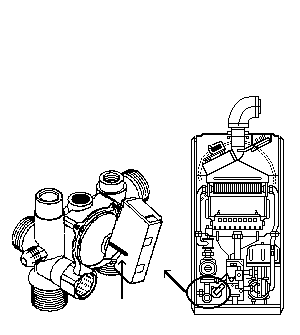

Check that the Boiler Flow Switch operates the Flow Switch Microswitch.
NOTE:
The spindle will retract into the Flow Switch when the hot water tap is turned on and return to its original position (protruding from the valve) when the hot water tap is turned off.
Please check that the spindle moves both in and out.
NOTE:
The spindle will retract into the Flow Switch when the hot water tap is turned on and return to its original position (protruding from the valve) when the hot water tap is turned off.
Please check that the spindle moves both in and out.
