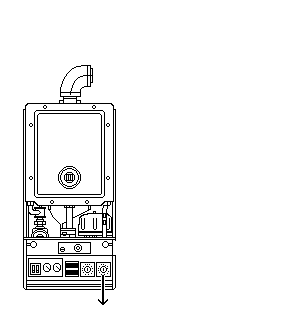

Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch in ON position
Mode Selector Switch to Constant
Heating Thermostat to MAX
Mode Selector Switch to Constant
Heating Thermostat to MAX
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Run boiler for approximately one minute. Ensure there is no rapid increase in system pressure. Pressure should remain in the 'blue' area of the pressure gauge.
NOTE:
Remember the C/H delay timer - the boiler will not fire immediately. There will be approximately a two minute wait.
NOTE:
Remember the C/H delay timer - the boiler will not fire immediately. There will be approximately a two minute wait.
Isolate as per TOPs P4
and refit as necessary
