ON/OFF SWITCH OPERATION
Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
On/Off Switch in ON position
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

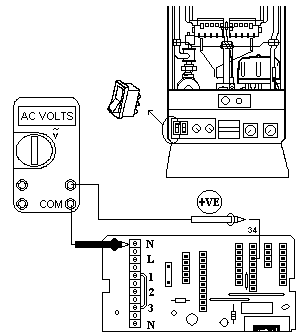

Is there Mains voltage present across connection 34 (L Black) and N (Blue).
PCB
MAINS POWER PRESENT
MAINS POWER ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
