FLOW SWITCH SPINDLE
Isolate Mains Power to appliance as per TOPs P4

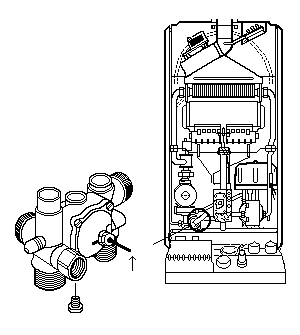

Remove plastic cover from flowswitch
Observation:
Is the spindle in the retract position?
Spindle
SPINDLE EXTENDED
SPINDLE RETRACTED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
