Set Appliance State:
Mains Power Off
Gas Off
CH Demand
On/Off Switch in ON position
Mode selector switch to Constant
Mode selector switch to Constant
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

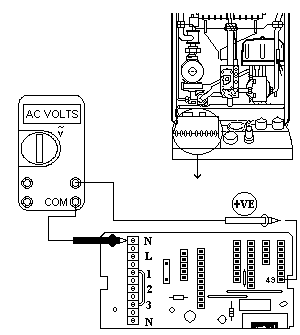

Measure Mains voltage across connection 49 (L Brown) and N (Blue).

Isolate as per TOPs P4
and refit as necessary
