Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
On/Off Switch ON
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

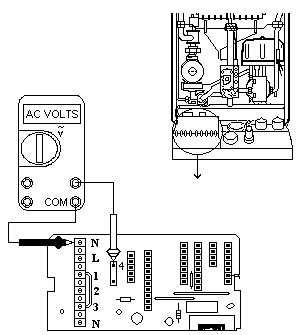

Measure the voltage across pins 4 and a suitable neutral to the pump on the PCB
Expect 240Vac approximately.
Expect 240Vac approximately.

Isolate as per TOPs P4
and refit as necessary
