Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
On/Off Switch ON
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

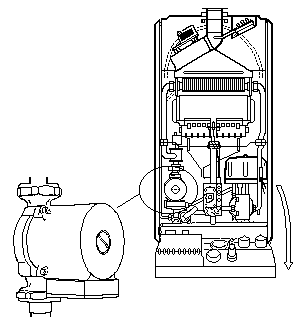

Check to see if the pump is spinning.
Do not take vibration as an indication of operation.
Remove inspection screw on front of pump and check impeller is spinning.
Do not take vibration as an indication of operation.
Remove inspection screw on front of pump and check impeller is spinning.
Isolate as per TOPs P4
and refit as necessary
