Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch in ON position
Mode Selector Switch to Constant
Heating Thermostat to MAX
Mode Selector Switch to Constant
Heating Thermostat to MAX
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

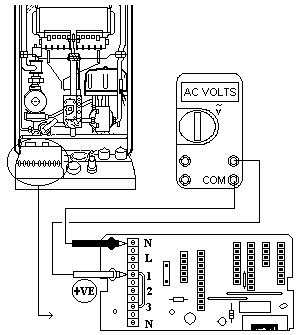

Measure Mains voltage across connection 1 (L White) and N (Blue).

Isolate as per TOPs P4
and refit as necessary
