Set Appliance State:

Gas On; Pilot On
Set Multimeter to mVolts DC Set meter to measure DC mVolts
Isolate Mains Power to appliance as per TOPs P4

Measurement:

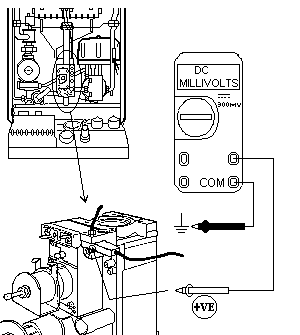

Measure the output voltage of the thermocouple by inserting one probe within the interrupter assembly to contact the thermocouple inner core and place the other probe to earth.
