Set Appliance State:
Mains Power Off
CH Demand
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset lockout as necessary.
Ensure all electrical heating controls are calling.

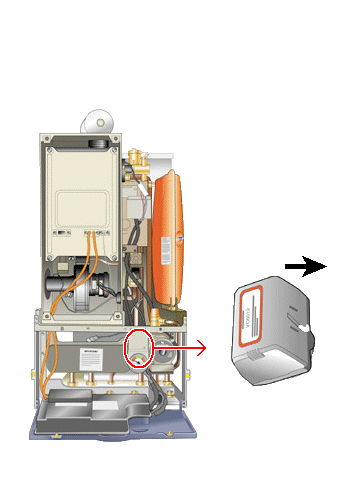

Observe the diverter valve head actuator lever.
Is it in or does it change to the CH position?
Note:
CH position is when the lever is nearest to the body of the valve i.e. farthest right as look at the head when in situ.
Ensure all electrical heating controls are calling.
Observe the diverter valve head actuator lever.
Is it in or does it change to the CH position?
Note:
CH position is when the lever is nearest to the body of the valve i.e. farthest right as look at the head when in situ.
