Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset lockout as necessary.

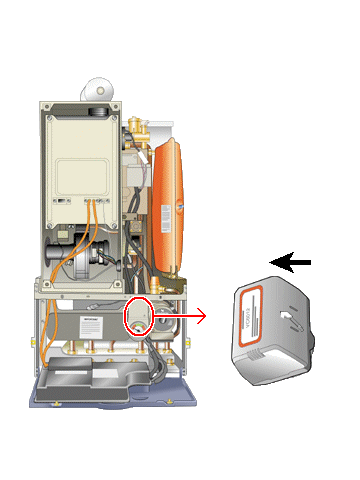

Observe the diverter valve head actuator lever.
Is it in or does it change to the DHW position?
Note:
DHW position is when the lever is nearest to the top of the actuator i.e. farthest left as look at the head when in situ.
Observe the diverter valve head actuator lever.
Is it in or does it change to the DHW position?
Note:
DHW position is when the lever is nearest to the top of the actuator i.e. farthest left as look at the head when in situ.
