Set Appliance State:
Mains Power Off
Set Multimeter to DC Volts
Use insulation mat as necessary
Remove the main control box cover to expose the control PCB
Remove the main control box cover to expose the control PCB
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

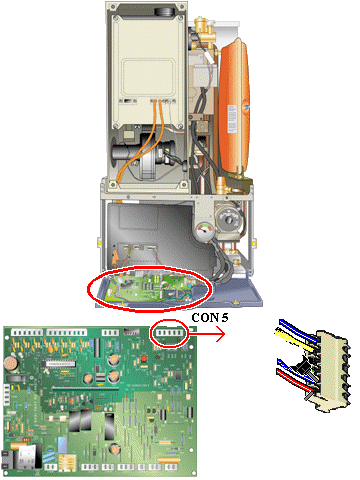

Measure voltage across connection 1 (red lead) and connection 2
(blue lead) at connector marked CON 5 on the control board.
Expected voltage 22 to 38 volts DC.
(blue lead) at connector marked CON 5 on the control board.
Expected voltage 22 to 38 volts DC.
Isolate as per TOPs P4
and refit as necessary
