Set Appliance State:
Mains Power Off
CH Demand
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset lockout as necessary.
All heating controls calling.

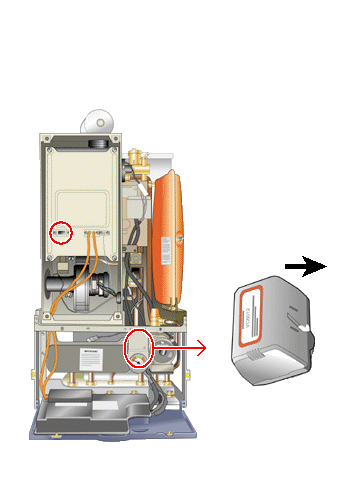

Does the appliance ignite, run and diverter valve change to CH position?
Note:
CH position is when the lever is nearest to the body of the valve i.e. farthest right as look at the head when in situ.
All heating controls calling.
Does the appliance ignite, run and diverter valve change to CH position?
Note:
CH position is when the lever is nearest to the body of the valve i.e. farthest right as look at the head when in situ.
