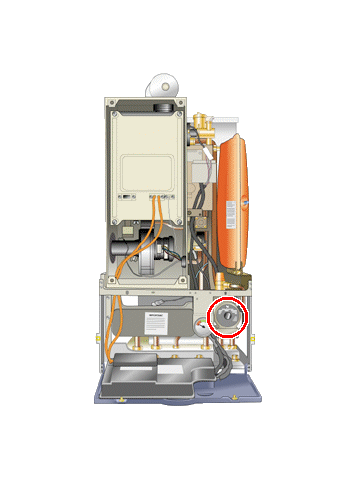

Set Appliance State:
Mains Power On
Set CH temperature to 60 degrees (the system circulating temperature should be lower than this to carry out the test)
CH temperature is set by depressing the CH button on the control panel and depressing the + or - buttons to alter the temperature setting
Set CH temperature to 60 degrees (the system circulating temperature should be lower than this to carry out the test)
CH temperature is set by depressing the CH button on the control panel and depressing the + or - buttons to alter the temperature setting
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset lockout as necessary.
Ensure all heating controls are calling.
Allow system to fire and start to heat.
When the flow temperature exceeds the set temperature a one minute pump overrun will occur then a three minute anticycle time.
After this time if the flow temperature has fallen low enough the boiler will refire, if not then the cycle will start again.
Ensure all heating controls are calling.
Allow system to fire and start to heat.
When the flow temperature exceeds the set temperature a one minute pump overrun will occur then a three minute anticycle time.
After this time if the flow temperature has fallen low enough the boiler will refire, if not then the cycle will start again.
