RESISTANCE WARM START SENSOR AND HARNESS

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

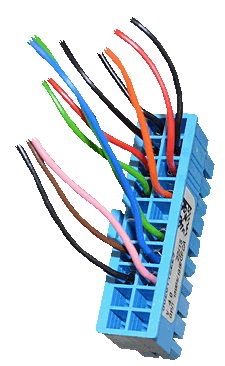

Remove connector X2 from the PCB

Measure the resistance between pin 4 (orange)
and pin 12 (black) at connector X2.

Note:
Each pin on the PCB connector is numbered.

Note: Clicking on the resistance table will switch between table and graph view.

Resistances vary with temperature and should conform approximately to the table below:
