RESISTANCE DHW SENSOR

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove the connector from the DHW sensor

Measure the resistance between the two terminals of the sensor.
Is the resistance measured as expected?

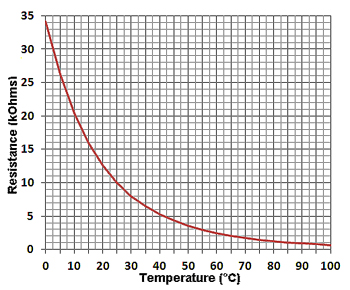

Resistances vary with temperature and should conform approximately to the table below:

Note: Clicking on the resistance table will switch between table and graph view.
