Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Attach temperature clamp to primary return above the pump as indicated

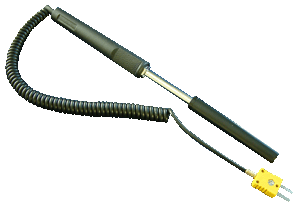

Use probe style temperature sensor for flow pipe above secondary heat exchanger
Use probe style temperature sensor for flow pipe above secondary heat exchanger
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Measure the temperature differential after the appliance has been
running for at least 2 minutes.
Expected differential approximately 25°c or less.
running for at least 2 minutes.
Expected differential approximately 25°c or less.
