Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts
Turn Hot Water Tap On

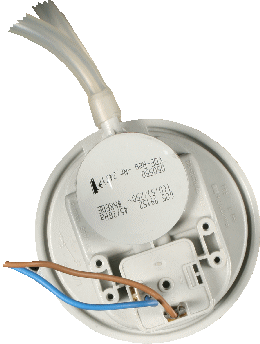

APS is located at rear of boiler, top left
Attach red crocodile clip to brown wire
Attach black crocodile clip to a suitable earth point
Attach red crocodile clip to brown wire
Attach black crocodile clip to a suitable earth point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Measure the voltage between the brown wire and a suitable earth.
Note 1:
The design of switches may vary from appliance to appliance.
Note 2:
Crocodile clip should always be connected to the brown wire irrespective of which spade it is connected to.
Note 1:
The design of switches may vary from appliance to appliance.
Note 2:
Crocodile clip should always be connected to the brown wire irrespective of which spade it is connected to.
Isolate as per TOPs P4
and refit as necessary
