Set Appliance State:
Mains Power Off
Water heater switch set to constant

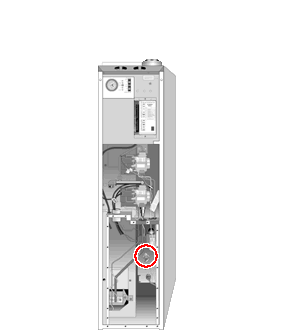

Set thermostat to MAX position
Set thermostat to MAX position
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Allow burner to ignite and system to run and burner shut down.
Measure temperature of flow.
Does thermostat operate and the burner shut down when temperature is reached?
Note.
Maximum temperature differs if fitted to a direct (60 degrees C) or indirect (82 degrees C) system.
Measure temperature of flow.
Does thermostat operate and the burner shut down when temperature is reached?
Note.
Maximum temperature differs if fitted to a direct (60 degrees C) or indirect (82 degrees C) system.
