Adjust, Service, Repair or Replace as necessary
Isolate Mains Power to appliance as per TOPs P4
Isolate Water and Gas as appropriate

Location:

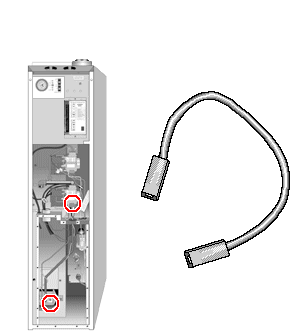

Runs from the electric flame control device (connected to the lower of the two gas valves) to the ignition burner assembly (lower left hand side).
Upon completion of the fault diagnostics carry out final electrical safety tests and checks as per TOPs (C6).
Part Number: GCE80159


Refer to ADAPT for further information.
