Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand

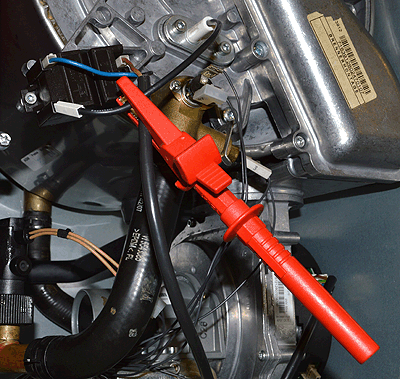

Disconnect the ignition lead from terminal 3 on the spark generator and position as shown in the image opposite with the aid of a crocodile clip
(ignition lead positioned just off the terminal inside the spark generator)
(ignition lead positioned just off the terminal inside the spark generator)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if required.
Allow fan to run and ignition sequence to commence.
As the appliance goes through repeated ignition attempts can a strong consistent spark be observed between the ignition lead and the spark generator terminal?
Note.
The appliance will enter lockout after 3 failed attempts of ignition, approximately 40 seconds between each attempt, reset as required until test is complete.
Allow fan to run and ignition sequence to commence.
As the appliance goes through repeated ignition attempts can a strong consistent spark be observed between the ignition lead and the spark generator terminal?
Note.
The appliance will enter lockout after 3 failed attempts of ignition, approximately 40 seconds between each attempt, reset as required until test is complete.
Isolate as per TOPs P4
and refit as necessary
