Isolate Mains Power to appliance as per TOPs P4

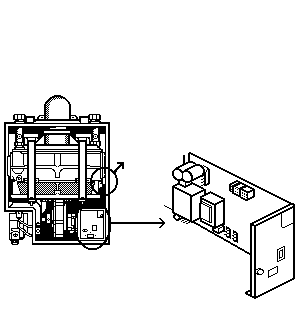

Open the control box by removing the two securing screws and lower the access door
Draw the control board forward to allow access to the PCB
Remove the functional case door
Open the control box by removing the two securing screws and lower the access door
Draw the control board forward to allow access to the PCB
Remove the functional case door
Observation:
Check the condition of the flame detect lead (white wire) for damage causing it to short to earth.
Isolate as per TOPs P4
and refit as necessary
