Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Outer Case Removal

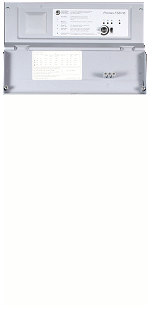

Lower the facia and undo the two facia securing screws and remove the facia.

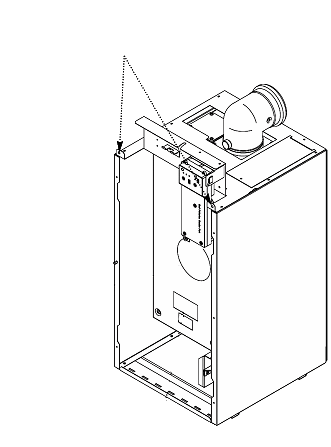

Undo the 2 screws securing the outer case from the top of the boiler as shown.
Lower the facia and undo the two facia securing screws and remove the facia.
Undo the 2 screws securing the outer case from the top of the boiler as shown.
Isolate as per TOPs P4
and refit as necessary
