Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)

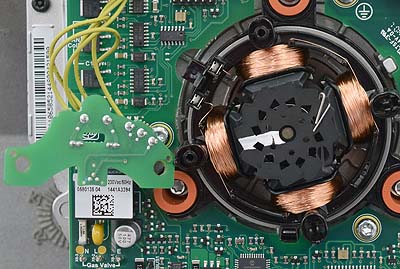

Remove fan driver PCB from the fan assembly
Remove fan driver PCB from the fan assembly
Measurement:
Test 1. Measure for resistance across the exposed fan terminals.
Expected resistance approximately 78 ohms.
Test 2. Measure for resistance across an exposed fan terminal
and a suitable earth connection.
Expected resistance greater than 1 MOhm.
Expected resistance approximately 78 ohms.
Test 2. Measure for resistance across an exposed fan terminal
and a suitable earth connection.
Expected resistance greater than 1 MOhm.

Isolate as per TOPs P4
and refit as necessary
