OVERHEAT THERMOSTAT (HOT)
Set Appliance State:
Set Multimeter to Resistance
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Boiler Switch in OFF position
Measurement:

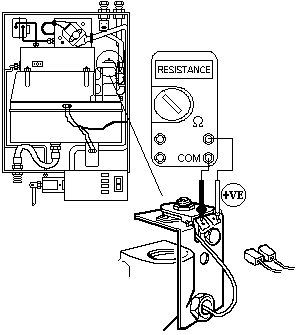

Measure the resistance across the Overheat Thermostat.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
