Set Appliance State:

Mains Power Off
Set Multimeter to AC Volts Set meter to measure AC Volts
Boiler Thermal Store must NOT be at maximum temperature.
Models with Programmer: Rocker Switch to Continuous.
Models without Programmer: Rocker Switch to On.
WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On

Measurement:

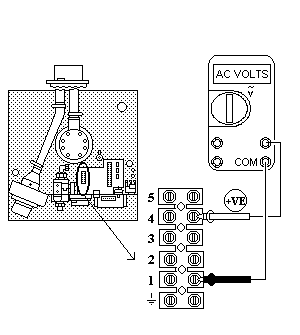

Check for a Voltage of approximately 310 volts AC
across Connection 4 (on the 5 way Terminal Block) and
Neutral (Connection 1 on the 5 way Terminal Block).
