Set Appliance State:
Mains Power Off
Selector Switch to Constant.
Heating Switch to ON.
Heating Switch to ON.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

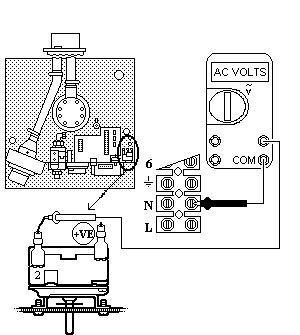

Measure Mains Voltage across the Boiler Thermostat Spaded Connection 2 (Brown wire) and the Main Appliance Neutral Connection.

Isolate as per TOPs P4
and refit as necessary
