Set Appliance State:
Mains Power Off
Models with Programmer: Rocker Switch to Continuous.
Models without Programmer: Rocker Switch to ON.
Release the Control Panel from the appliance casing to allow access (from the rear) to the Switch Connections.
Models without Programmer: Rocker Switch to ON.
Release the Control Panel from the appliance casing to allow access (from the rear) to the Switch Connections.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

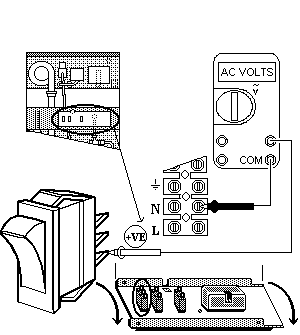

Measure Mains Voltage across the Brown Wire Switch Connection (at selector switch) and the Main Appliance Neutral Connection.

Isolate as per TOPs P4
and refit as necessary
