ELECTRODE LEAD.
Isolate Mains Power to appliance as per TOPs P4
Observation:
Check Electrode Lead for any signs of damage and sound connections.

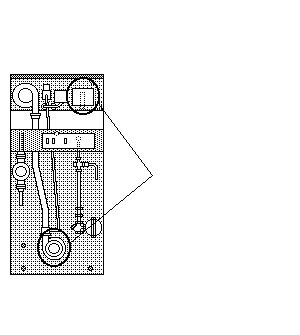

The ignition lead runs between the full sequence ignition box and the electrode at the burner
LEAD SATISFACTORY.
LEAD UNSATISFACTORY.
