RESISTANCE FLOW THERMISTOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove the two spade connectors from the flow thermistor
Image shows wires of overheat stat disconnected
for clarity but this should not be necessary to carry out test

Measurement:

Measure the resistance between the two terminals of the flow thermistor.

fr maxima 35 s 386815 oht and 795422 thr flow wires disc.jpg

Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	19.0kΩ - 30.0kΩ
10°C to 20°C	12.0kΩ - 19.0kΩ
20°C to 30°C	8.2kΩ - 12.0kΩ
30°C to 40°C	5.6kΩ - 8.2kΩ
40°C to 50°C	3.9kΩ - 5.6kΩ
50°C to 60°C	2.8kΩ - 3.9kΩ
60°C to 70°C	2.0kΩ - 2.8kΩ
70°C to 80°C	1.5kΩ - 2.0kΩ
80°C to 90°C	1.2kΩ - 1.5kΩ
90°C to 100°C	900Ω - 1.2kΩ

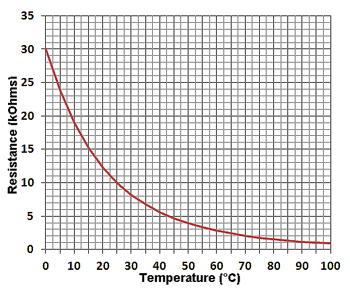

Note: Clicking on the resistance table will switch between table and graph view.
